Name: Rotary & Flatbed Digital Die Cutting Machine VR320F
Brand: Vicut
Rating: 5.0 (70 reviews)

The VICUT VR320F digital die cutter, updated from VICUT roll to roll label cutter VR320X, is the most affordable digital sticker cutting system for small and medium production. It is a collection of web guide, laminating,die-cutting, automatic waste removal system, best solution for roll-to-peices digital finishing. No cutting dies required, fast and precise , fully satisfy on-demand sticker cutting. Also can be used for regular roll to roll label kiss cutting system.

Technical Paramters

Model Name	Digital Die Cutter VR320F
Maxi. roll diameter	450mm
Cutting media width	150--340mm
Max.contour cutting width	330mm
Max. contour cutting length	400mm(segmentation cut to 1.2m for kiss cutting)
Mini. cutting length	10mm
Max. die cutting speed	6m per minute (depends on label shape and size)
No. of die cutting heads	standard 4 heads
Cutting type	full cutting, kiss cutting
File format	DXF, PLT
Die cutting blades	tungsten steel blades
Die cutting precision	0.1mm (duplicate)
Die cutting mark registration	electric eye (CCD camera is optional)
Matrix removal	automatic conveyor system
Roll Rewinder	1pcs
Slitting device for roll	optional
Data transfer method	PC transfer via USB, U-disk
Working voltage	110-240VAC, 2000W
Machine dimension	160100136cm(LWH)
Weight(N.W/G.W)	Machine: 460kgs/570kgs Vacuum pump: 14kgs/16kgs
Packing size	Machine: 170115157cm Vacuum pump: 450450500mm
Optional function	Linear system

1. Combination of flatbed and roll to roll mode.

2. Roll to roll kiss cutting labels & full cut roll into pieces.

3. Automatic changing the cutting heads according to designs.

4. Web guide system to ensure accurate paper feeding.

5. Cold lamination for extended labels durability.

6. Automatic conveyor system for matrix removal.

	description
	Multiple die cutting heads, automatic adjustment distance VR320F works with multiple die cutting heads, standard 4 heads work at the same time, highly increase working efficiency.
	User friendly operation panel. The main operation buttons are integrated into the same panel for easy operation. Touch screen interface, sensitive response, easy to set machine parameters.
	Digital cutting positioning sensor. The positioning sensor scans the marked points printed on the material to obtain the cutting dies information and feed it back to the machine control system, so as to realize the digital cutting.
	Automatic web guide system. Adopting advanced ultrasonic correction system to ensure smooth paper feeding without deviation, laying the foundation for precise cutting in the next step. Web guide platform also can be used for splicing media.
	Vacuum suction cutting table. Vacuum inhaling cutting platform, the adsorption function starts along with die cutting, and automatically loosening valves after cutting finishes, to ensure cutting accuracy and smooth paper feeding.
	Cold lamination. Automatic lamination before die cutting, makes finishing labels more durable and more widely application.
	Automatic conveyor waste removal. With automatic conveyor system, the cutting waste paper will be automatically removed so as to obtain a clean label pieces for the next process.
	Easy-to-use software. Dedicated software support PLT & DXF format file, it can choose the suitable blades and adjust the blades distance automatically according to different designs, no need manual adjustment.
	Linear system. (optional) In some areas, there is backing paper on the cold laminating film, which can be removed before laminating by optional linear system.

Applicable Industry: VR320F flatbed & roll to roll label finisher is mainly used in producing wide range of stickers which can be used for signs, labels, etc.

Applicable Materials: Stickers, Paper, PP, BOPP, PET, PVC & More!

	Vacuum pump. Vortex type air pump, power: 550W, speed: 2800r / min, with muffler and pressure change valve, connects to the cutting platform,fix the material on the cutting platform during the cutting process.

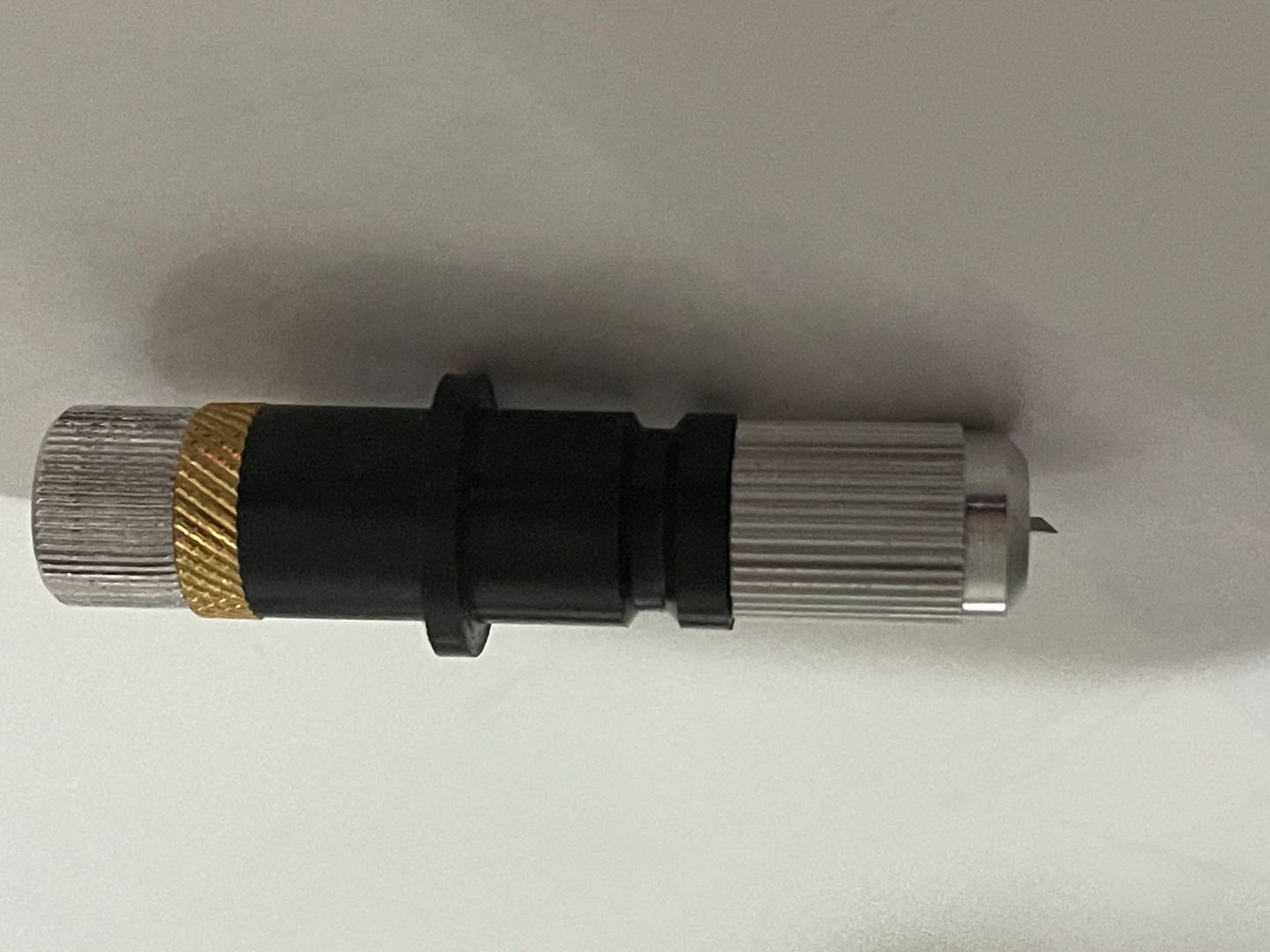

	Blade holder. Precision blade holder, built-in bearing design, cooperate with machine blade compensation function, make cutting more smooth. Easy to install the blade and adjust the distance between the blade tips.
	Die Cutting Blades. Special 45 degree die cutting blade, suitable for cutting 0.25 mm thick adhesive label materials such as sticker, coated paper, synthetic paper, PP, PET, etc.
	Air compressor.(optional)
