Multiple Blades Digital Label Cutter

Name: Multiple Blades Digital Label Cutter
Brand: Vicut
Rating: 5.0 (9 reviews)

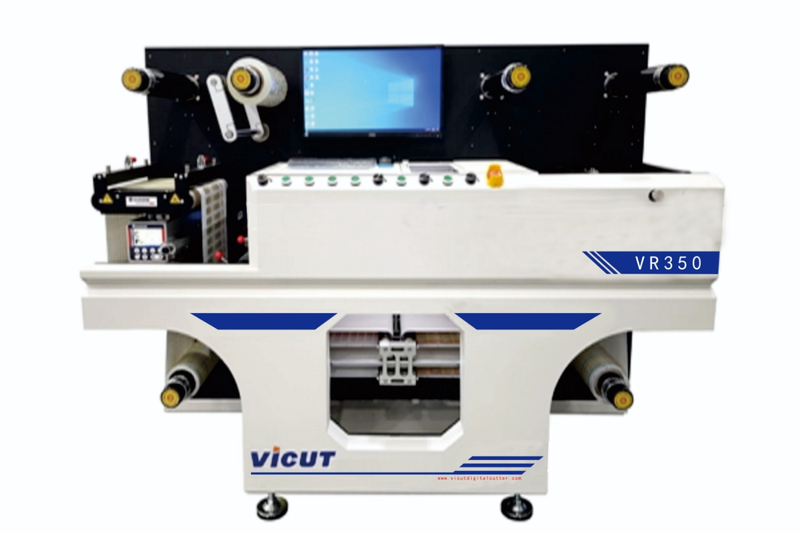

The VICUT multiple blades digital die cutter VR350, equipped with maximum six blades, heads distance is fully automatic adjustable with Al software control, which is perfect for short to medium length print finishing.With linear system,users are able to work with high end laminating films, two re-winders at final step can make it more convenient to rewind the small rolls after slitting.

Optional inline sheeting system is able to cut roll into sheets easily, or it can be used as an offline solution to cut roll products to any length needed!
The VICUT VR350 is also designed with the end user in mind. It features an intuitive software which is easy to learn, as well as an in line codes reader for automatic job changes.
In addition to lamination, slitting, and waste removal, the VICUT VR350 also features an automated web guide to ensure your product is running smooth through the machine at all times.

Quantity:
Availability:





Inquire Add to Basket

Model:
VR350
Brand:
Vicut

Main Features

All-in-One solution. Lamination,matrix removal,slitting,rewinding.ect.
Automatic job exchange. CCD scan the codes marks to read the job data,to realized the cutting job changes.
Automatic Intelligence technology applied. The cutting heads distance is fully automatic adjustable.
Trajectory Optimization. Automatically calculates optimal usage of heads in each step of cutting for a specific job.
Long label cutting ability. Max.340mm x 1250mm size label cutting
Fast cutting speed. Max.die cutting speed 9m/min easily cutting 7x15cm square.
Automatic web guide. Ensure smooth paper feeding with no offset for next step working process.
Optional Accessories. Separate inline roll to sheet cutter.

Technical Parameters

No.of cutting heads	standard 4 heads,up to 6 heads
Working speed	9m/minute(cut 7cm x l5 cm square)
Max.label length	1250 mm
Cutting media width	100-350mm
Maxi.roll diameter	450mm
Maxi.laminating roll diam.	300mm
Max.matrix roll diam.	350mm
Max.rewinder roll diam.	upper rewinder roller 350mm;down rewinder roller 450mm
Operation system	Embedded computer with Ai operation software and Large screen LCD monitor
Heads distance adjument	Automatic distance adjustment between all cutting heads
Unwinder & Rewinder	1 unwinder and 2 rewinder with mechanic expansion
Reg. marks type	dot marks+number codes/QR Code
Positioning device	Electric eye+CCD camera
Job exchange function	Yes
Data transfer method	PC direct
Die cutting precision	0.1mm(repeat)
Slitting width	10-330mm
Slitting system	Round knife slitting System with position adjustment(4slitters, max.15)
Slitting speed	max. loomper minute
Slitting precision	0.1mm
File format	PLT,DXF
Working voltage	AC l00-240V,50-60HZ,1000 Watts
Machine dimension	180010801460mm
Packing Size	216130197CM
G.W./N.W.	1450kg/1400kg
Optional	Multiple slitting units&Separate inline sheet cutting system

1		unwinding system The unwinding roller of the VR350 machine can accommodate rolls with a maximum diameter of 450mm
2		High Precision Web Guide Feeding System Utilizing the ultrasonic web-guide system,it makes the feeding perfectly
3		Waste Removing System The Presion machinery design can control the roller rotating uniform,avoid remaving waste discontinuously due to unstable pressure and keep finished labels clean
4		Cold Laminating The VR350 machine comes standard wrth a cold laminating function,making the labels more durable. The maximum diameter of the laminated shaft is 350MM
5		Laminating Film Liner Removal System Additionla rewinding roller for remove the back paper of laminabng film,users are able to use high-end laminating film,makes final labels durable and up-market.
6		Precision Slitting System Up to 15pcs slitting blades,easily slitting big roll into small rolls for final labeling process. High speed with 100m per minute,it also can be used as independent slitting System
7		Digital Die-cutting System VR350 digital label cutter utilizes high precision screw transmission system.Equipped with up to 6pcs cutting heads,the heads distance is fully automatic adjustable according to the labels quantity and shapes. It is easy to install blades and fix it tightly for continually high speed cutting
8		CCD Identify System The CCD camera position and identify system can recognize the sequence,reach the function of changing file and cut next graphics automatically
9		Rewinding System VR350 featured with two re-winders at final step of roll label finishing,easier to rewind small rolls after slitting. The appropriate tension makes the material collection more precise and the coil material neat, providing great convenience for the next labeling process
10		Easy-to-use Cutting Software unning status can be seen in a reaI-time .Support file database Choose the quantity of the heads based on graphics Intelligent cutting with trajectory optimization .Choose the heads distance automatically Auto-generate the working records
11		Standard Industrial Computer VR350 label die cutter worked with high-end industrial computer,with software installation and parameters setting ready for users, providing extremely convenience for operators.Cutting files will be sent directly from PC to machine,no need additional U-disk or cables
