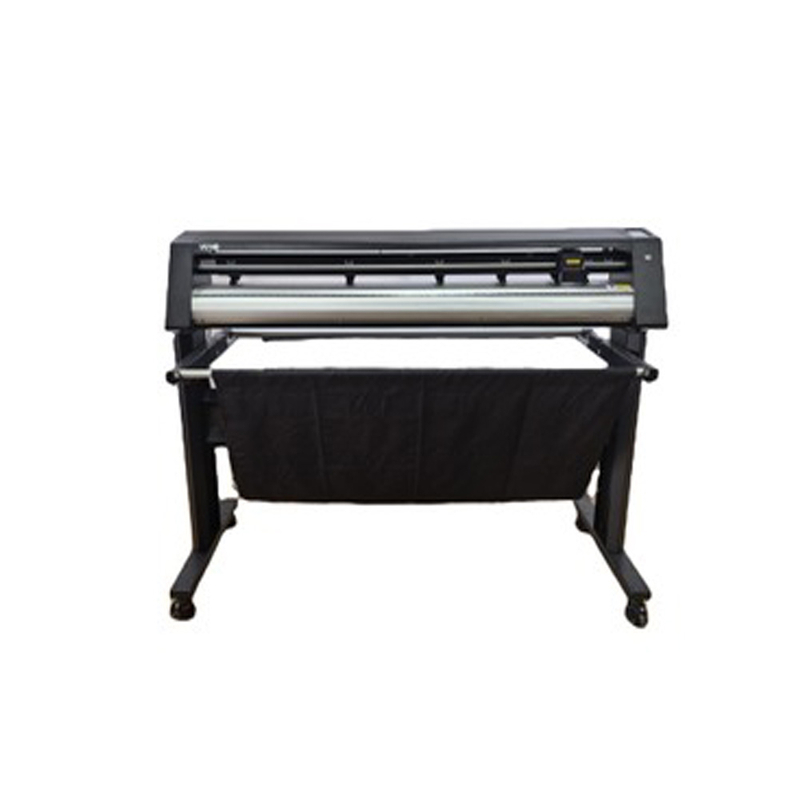

High Speed Servo Vinyl Cutter VC140


The VIGUT VC series vinyl cutter plotter is specially designed for users who require working with large plots and processing large quantities in professional quality, without sacrificing cutting speed.

● High speed CCD camera positioning system.
● The control system adopts advanced algorithms to ensure the maximum balance between speed and accuracy.
● The servo drives provides more stability and cutting precision.

● The tool drop point and the start point shall be smoothly connected without burrs.
● With advanced configuration, fast cutting speed, high precision and reasonable price, VC series vinyl cutter is becoming one of the most cost-effective in the market.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1.Plug and play. Simple installation, no additional driver necessary.

2.Servo drives. Silent, precise and powerful servo drivers for best cutting results.

3.High resolution CCD Camera registration.

4.High precision. Able to cut small fonts and letters.

5.High speed. Maximum cutting speed 1200mm/s.

6.Long length tracking. Straight tracking to 4m without offset, which makes processing long images easy and fast.

7.Easy menu navigation. Comfortable control panel with illuminated LCD -display and large buttons.

8.Multiple file transfer modes. Supports three methods of file transmission,U-disk, network interface and USB cable and Wifi.




Specifications

Model No.

VC80

VC140

VC160

Structure

With stand

With stand

With stand

Max. media width

720mm

1400mm

1660mm

Max. cutting width

600mm

1280mm

1540mm

NO. of pressure roller

4pcs

6pcs

7pcs

Cutting accuracy

600a+/- 0.02mm

Drive model

Servo drives

Cutting speed

Max 1200mm/s

File transfer mode

USB/Network/U-Disk/Wi-Fi

Positioning system

High resolution CCD Camera

Registration marks

Circle marks/Coner marks/QR code

Software

AIDCut-CAM, SignMaster

Feeding system

Pull shaft feeding structure, simple & time-saving

Motor power

25watt

Max. force

1000G

Power consumption

< 100W

Working voltage

110V-130V or 210-230V, 50hz/60hz

Ambient temperature

+5°C ~+ 35°C

G.W./N.W.

47/44kg

61/58kg

67/64kg

Packing Size

1050 x 380 x500mm(0.2CBM)

1730 x 380 x 500mm(0.33CBM)

1990 x 380 x 500mm(0.38CBM)


Photos

Detail Description

8

Moving carriage

Steel Frame with inliner bearing, it is with more cutting pressure which is adjustable easily, and it is good in heat dispersion. With built-in high resolution CCD camera, it can scan the multiple mark points automaticlly to realsize contour cutting fuction.

9

Steel thorn and pressure roller

The plotter equipped with steel which can fix media effecitively to avoid any sliding and ensure the feeding precision. There are several pressure rollers on up side of beam, the distance between each roller can be adjusted to fit for different size media. These high precision imported rollers, assures no offest feeding long distance.

10

Multiple interface

Multiple data transfer methods supported. U-disk, Network, USB cable and WI-FI connection. Users are allowed to select data transfer method depends on various situation.

11

Touch control screen

User-freindly touch control screen provides convenient operating experience.

12

Suction holes

With many suction holes on the cutter working table, material can be fixed tightly, avoid bluging of materials during processing.

6 suction holes

Suction holes.

With many suction holes on the cutter working table, material can be fixed tightly,avoid bulging of materials during processing.

13

Paper feeding system

Auto feeding system, easy to feed the roll material, smooth and fast.

14

Paper pressing device.

There is a row of paper pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range and reduce the offset.

15

Press bar.

After loading the material, pull down the handle to press the material, so that the material can be fixed during the paper feeding process and reduce the offset.

16

Graduation.

The graduations are marked on the paper feeding side of the working platform. So that the material size can be easily measured and adjusted when feeding the material.

17

Catch-up basket.

The machine equipped with a set of catch-up basket including 2pcs holding rollers and one piece of high quality nylon cloth bag, save space while keeping materials clean and tidy.

18

Switch on button & power interface.

Switch on and off easily with a press button after connecting the power cable with plotter. We offer various worldwide standard power plug. The voltage is also can be customized due to customer needs.


19

Blade Holder x 1 pcs

20

Calibration Tool x 1pcs

21

Cutting Blades x 3pcs

22

Dust Proof Cover x 1pcs

23

Grounding Wire & Fuse x 1pcs Each
24 Pliers x 1pcs
25 Power Calbel x 1pcs
26 Scraper x 1pcs
27 Screws x 1bag
28 Timmer x 1pcs
未标题-3

U-disk x 1pcs

Wifi Connector x 1pcs
31 USB Cable x 1pcs


Signmaking applications

Every company needs to advertise for itself, but advertising is often far too expensive for small to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company to use in advertising. It doesn’t only save a large amount of money, but also provides plenty of room to develop your own creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways, quickly and easily:

F Corporate signmaking

FCorporate vehicle signage

FDesign of the shop window advertising

FCreating banners and stadium advertising at events

FDesign of the premises of the Company (Room label, signs, screening applications, design elements)

FProduction of stickers and labels as so-called Print&Cut applications - first you print on eg. sign vinyl, then contour-cut with the vinyl cutter.


Home applications

Anyone who wants to individually create his personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized like this selection shows.

FCustomized wall tattoo

FCreate kitchen surfaces


Hobby applications in the fields of decoration, model making, etc.

FCreate templates for painting colorful wall design including banners, ornaments, and children’s artwork.

FIndividual design of garments like t-shirts, jackets, sweat shirts etc. with flock or flex film.


DIY-sticker  Heatpress-design

Label-signs  Tattoo

Papercut  Wall-stickers
